SKU: 24015

Electrostatic Powder Coating Machine

Dhs. 2,981.66
Includes VAT and Free UK Shipping Shipping

Popular right now
Selling fast - get yours whilst you can!


Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Lowest Price Guaranteed - Never find it cheaper anywhere else.

Monster Guarantee

As part of our Customer Satisfaction Policy, we proudly offer a 30-day return period for any reason, whether it be a change of mind or any other circumstance. Customers within the UK are responsible for initiating the return process themselves.

Delivery and Shipping

Our Free Shipping policy means ordered placed before 2pm get FREE next day delivery.

Description

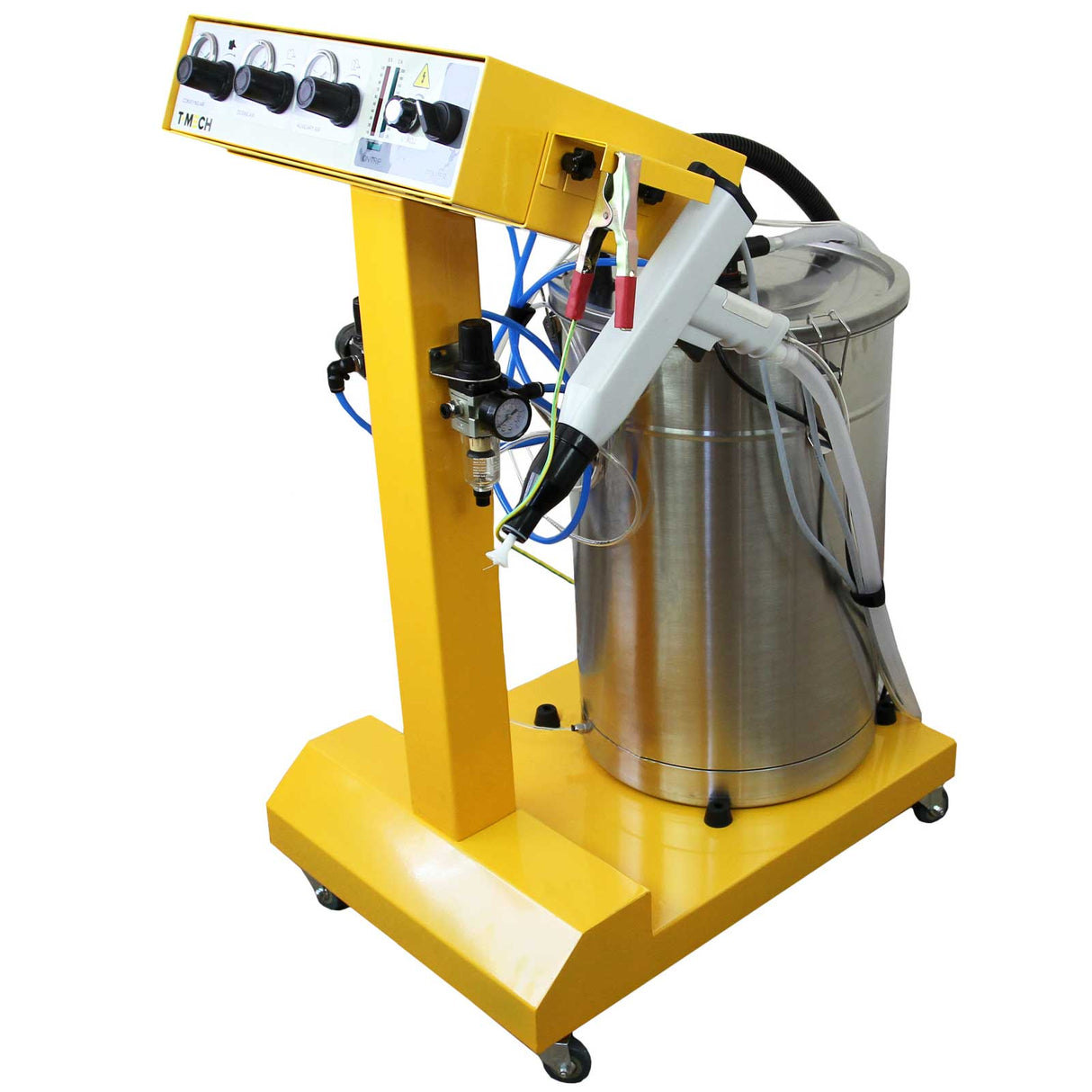

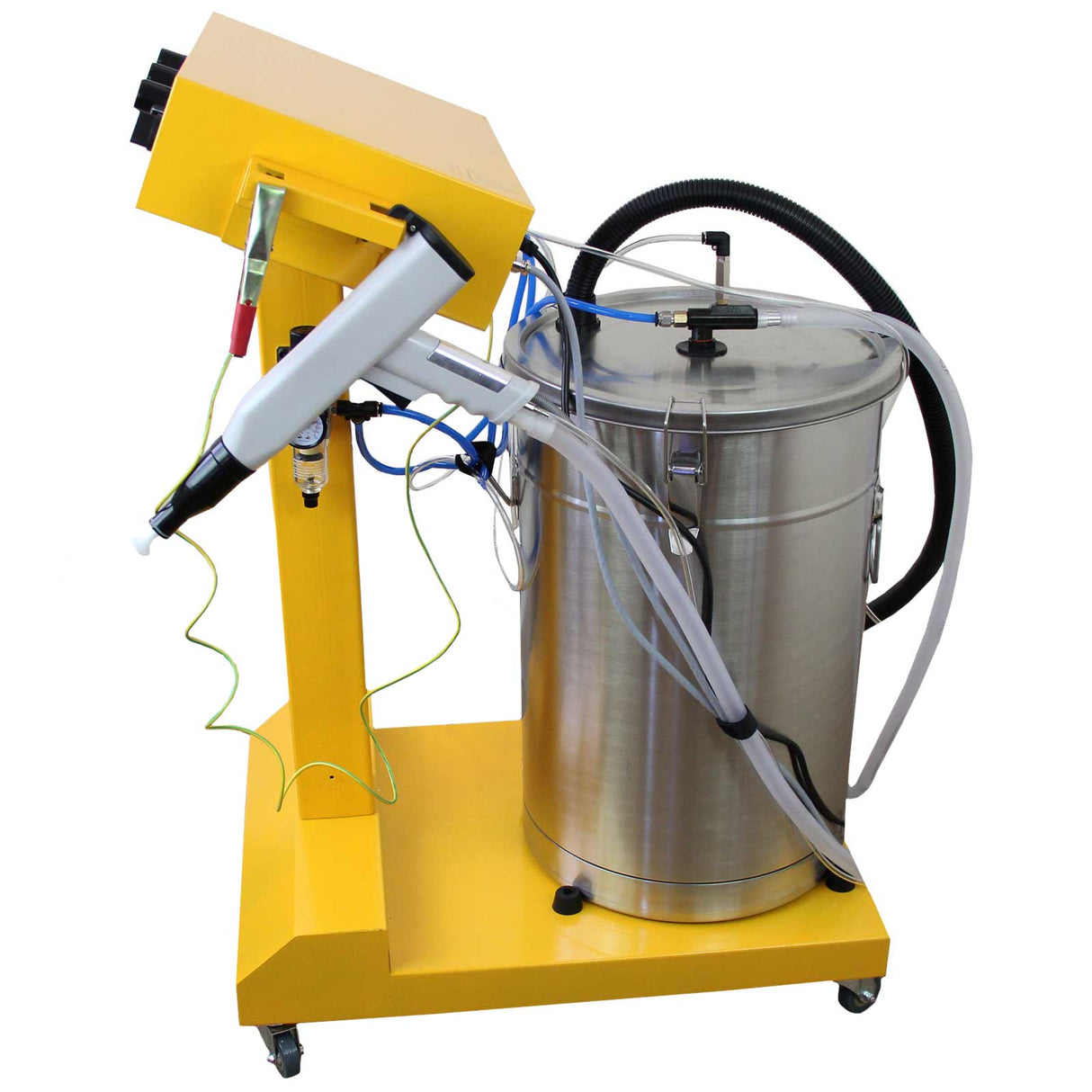

This electrostatic powder coating machine has a large 45L powder capacity, which means it’s great for big projects. The T-Mech machine is fully portable and has an easy to navigate control panel.

Powder coating is used to create a durable and high quality finish, which is great for tough machinery! Power coated products are more resistant to corrosion, fading and chipping so when done correctly it should last a very long time.

Powder coating is a dry finishing process using powder particles that are electrostatically charged and sprayed onto grounded metal work. After the coating is applied, you need to cure the parts using a powder coating curing oven.

Powder coating machines are used in a range of industries including auto parts, medical equipment, home appliances and much more!

Powder Coating Machine

  • Product features:

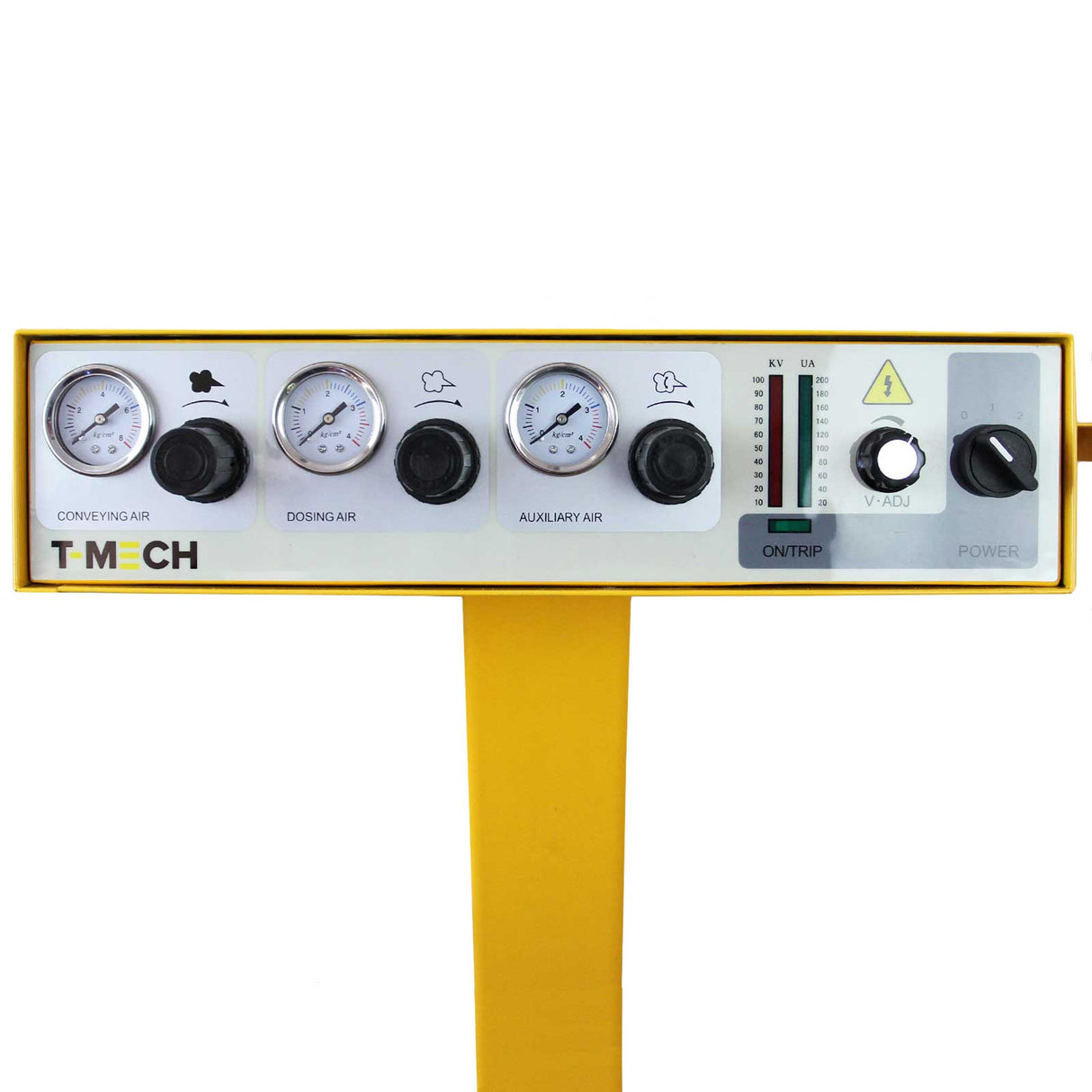

  • Easy to navigate control panel

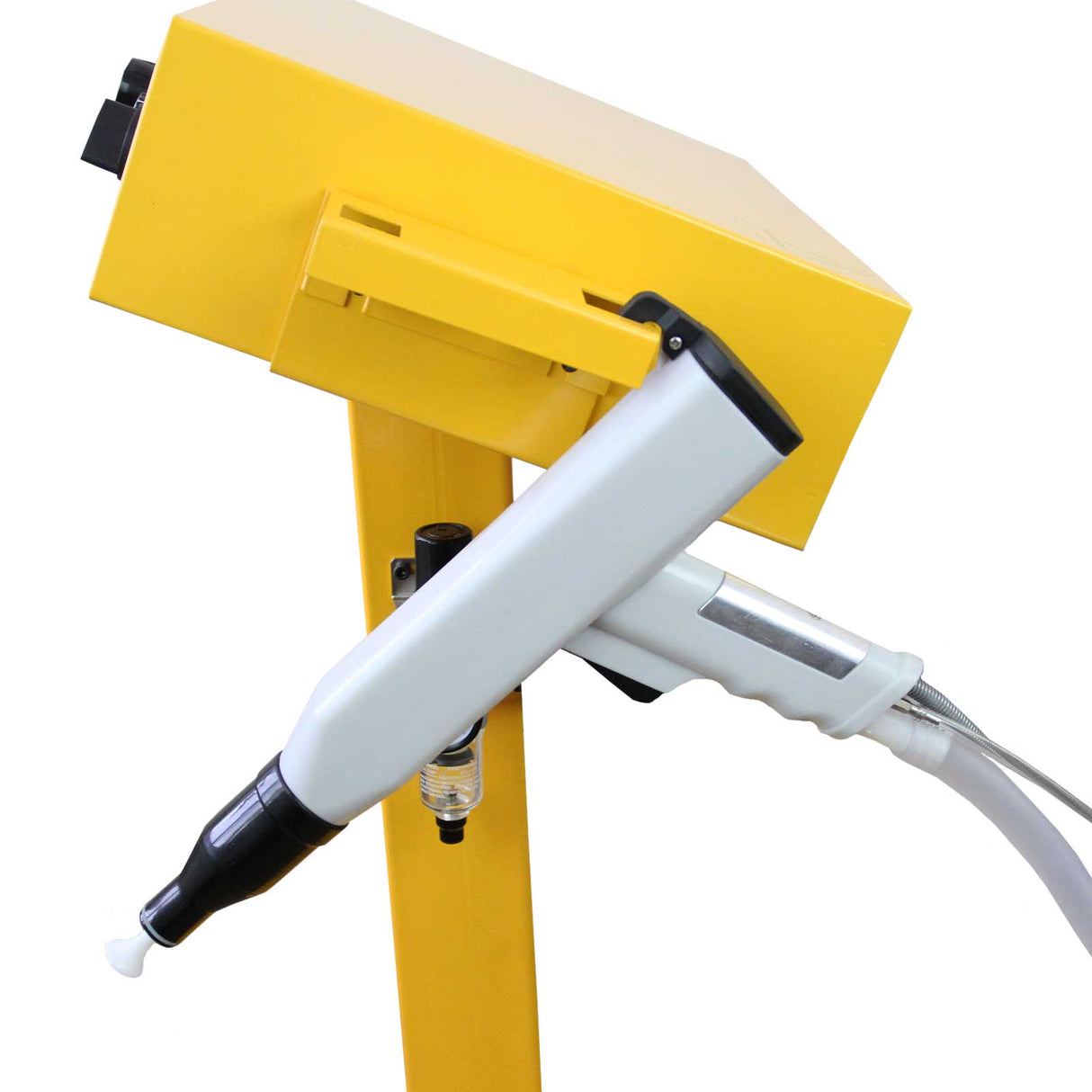

  • Includes 1 spray gun
  • Comes on wheels making it fully portable

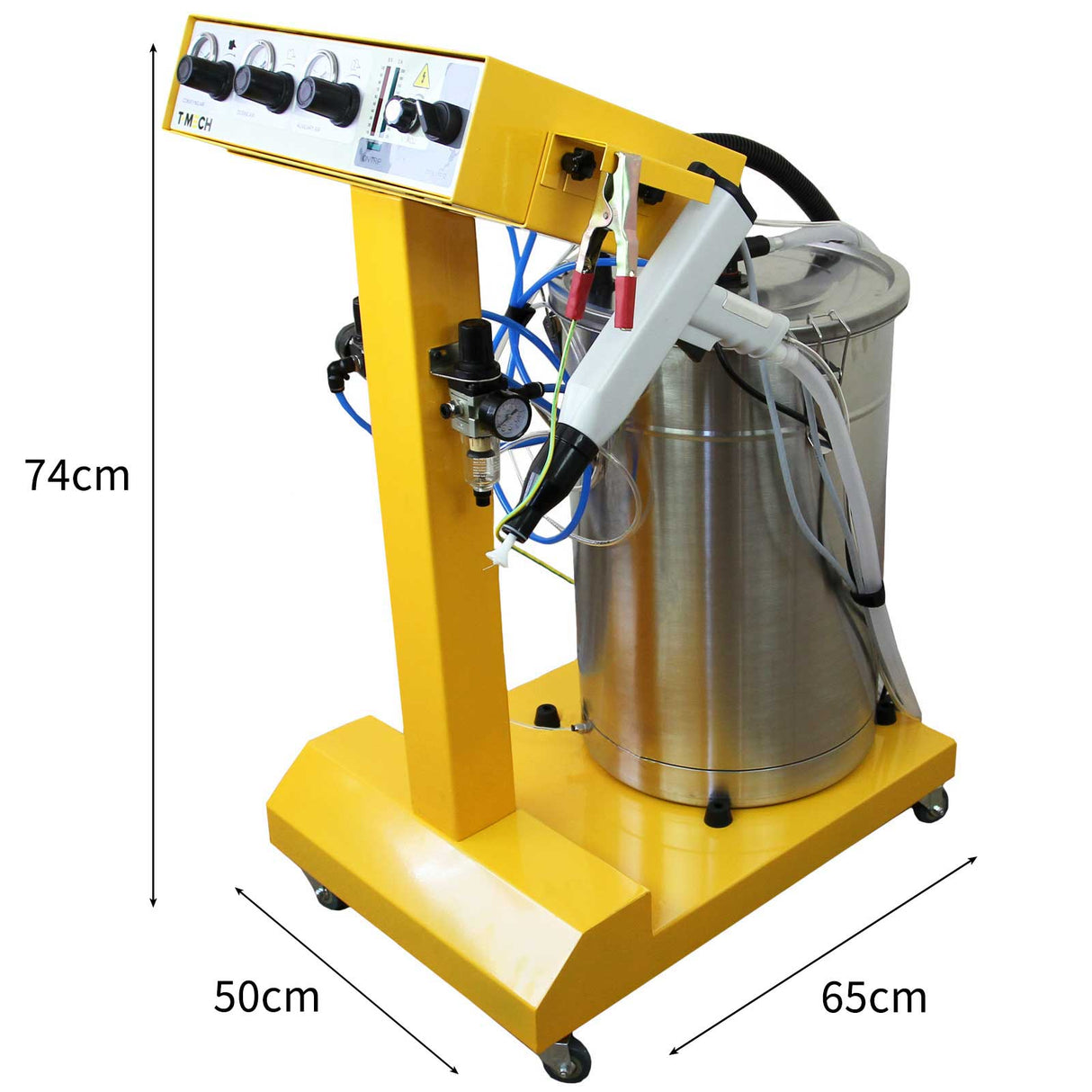

  • Dimensions: 74cm (H) x 65cm (W) x 50cm (D)

Specifications:

  • Input Power Voltage: 220V – 230V AC
  • Frequency: 50Hz-60Hz
  • Input Power: 40W
  • Electromagnetic valve control power voltage: 24V DC
  • Input Air Pressure: 0-0.6Mpa
  • Output Air Pressure: 0-0.5Mpa
  • Max. Air Consumption: 13.2m3/h
  • Output Powder Volume: Max. 600g/min
  • Output Powder Voltage: 0-100KV
  • Output Current: 0-150uA
  • Powder Hopper Volume: 45L

Electrical data

  • Nominal input voltage: 200-240V
  • Rated output voltage (to gun): 24V
  • Rated output current (to gun): 1.2A
  • Protection type: IP54
  • Temperature range: 0 °C -+40 °C (+32 °F - +104 °F)
  • Solenoid Valve Voltage: DC24V
  • Gun output voltage: 0-100KV
  • Gun output current: 0-150uA

Pneumatical data

  • Max input pressure: 0.8Mpa
  • Min input pressure: 0.5Mpa
  • Output pressure: 0.8Mpa
  • Max water vapour content of the compressed air: 1.3g/m3
  • Max oil vapour content of the compressed air: 0.1mg/m3
  • Max compressed air consumption: 13.2m/h(0.4MPa)

Gun Parameter

  • Input: 24V
  • Voltage Frequency: Around 25KHZ
  • Input Current: 1.2A
  • Output Voltage: 0~100KV DC
  • Max Output powder volume: Around 600G/MIN
  • Gun cable: 6M
  • Gun weight: 460G
  • Container Capacity: 45L

Operating Instructions

Powder coating should be undertaken by an experienced and competent person. This is in no way an exhaustive and complete guide of how to Powder Coat/Cure.

  • You should wear a Tyvek suit/coveralls and gloves to protect your hands and skin. Eye protection and a dust mask should be worn at all times.
  • Clean the base metal thoroughly and remove any rust or debris from the metal
  • Use a high temperature masking tape on the parts you don’t want to be powder coated, this can be left on whilst in the oven but needs to be removed quickly afterwards
  • Turn on the power supply switch and the indicator light should come on
  • Adjust the voltage to what is required using the dials on the control panel
  • Place powder into feeding barrel
  • Press the switch of spray gun and adjust to high voltage
  • Apply powder using spray gun
  • After applying the powder, be careful not to brush or blow on the powder coat as the powder could fall off and leave you with a less precise finish
  • Cure the metal using a powder coating curing oven, normally the object is heated to 175 to 190°C (350 to 375°F) for about 10 to 15 minutes, and allowed to cool
